Description

Router-antenna set, perfectly matched, consisting of the following components:

• Teltonika 5G router
• Panorama antenna (antenna with 7-piece cable set 1.5 m)
• 12 Volt connection
• Mounting kit

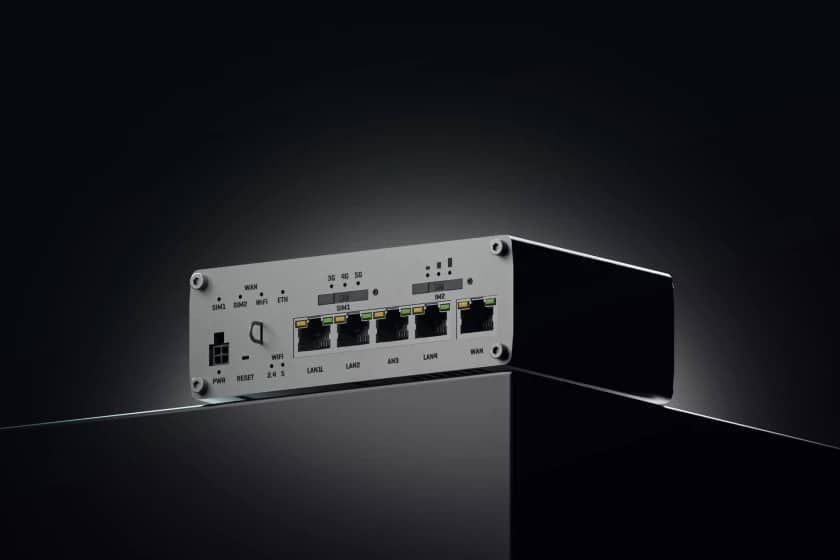

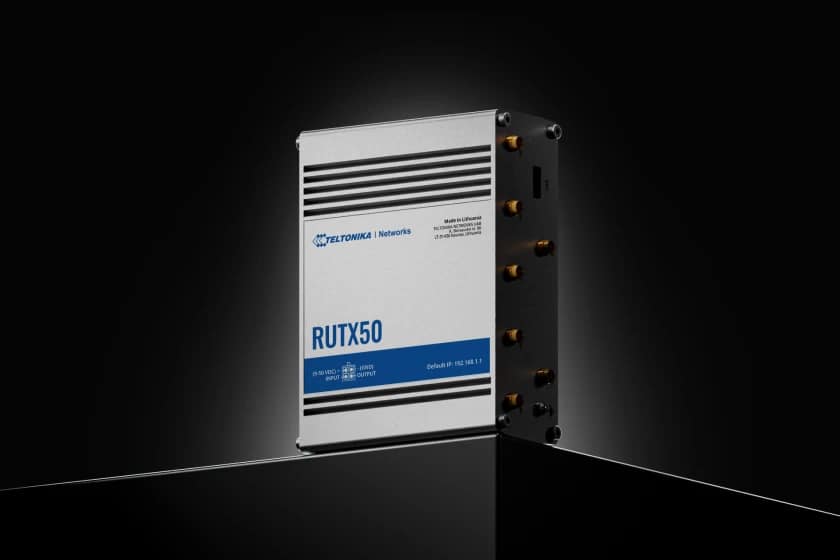

The TELTONIKA RUTX50 5G Internet router is a future-proof multi-network industrial router that provides 5G mobile communications for high-speed and data-intensive applications.

5G dual SIM mobile communication in combination with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable data transmission with extremely low latency.

The power of 5G technology combined with a wide range of interfaces and industrial hardware features ensures adaptability for future upgrades and expansions.

The router comes with the RutOS, which offers advanced security features and special industry protocols for a wide range of professional application scenarios and is compatible with the Remote Management System (RMS) for optimized remote management and monitoring functions for large fleets of devices.

TECHNICAL DATA

•  Mobile radio: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G (LTE) - LTE Cat 20 2.0Gbit/s DL, 200Mbit/s UL; 3G - 42Mbit/s DL, 5.76Mbit/s UL
• CPU: Quad-core ARM Cortex A7, 717 MHz
• Flash storage: 256 MB
• RAM: 256 MB
• Power supply: 4-pin socket, 9-50 VDC
• SIM: 2 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V

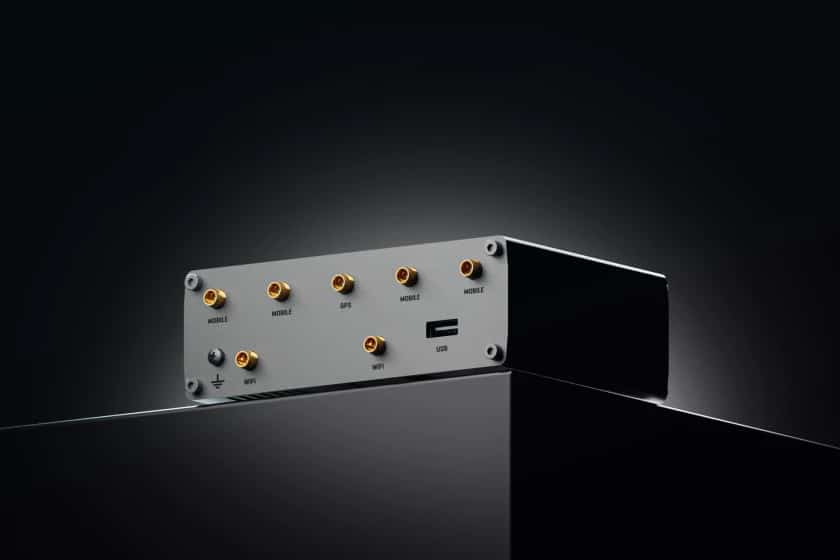

• Antenna connections: 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
• Ethernet: 5 x 10/100/1000 Ethernet connections: 1 x WAN (configurable as LAN), 4 x LAN
• WiFi: 802.11b/g/n/ac Wave 2 (WiFi 5) with
  Data transfer rates of up to 867 Mbps (dual band, MU-MIMO), 802.11r fast transition, access point (AP), station (STA)
• Wireless networking/roaming: Wireless networking (802.11s), fast roaming (802.11r)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Inputs/outputs: On 4-pin socket: 1 x digital input, 1 x digital open collector output
• Miscellaneous: 1 x USB host, 1 x earthing screw
• Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x power LED, 2 x 2.4G and 5G WiFi LEDs
• Operating temperature: -40 °C to 75 °C
• Housing: aluminum housing, DIN rail (can be mounted on both sides), flat installation surface
• Dimensions: (W x H x D) 132 x 44.2 x 95.1 mm
• Weight: 533 g
